How to create a new Project in WINCAPS III

Modified on Wed, 28 Apr 2021 at 05:19 PM

**Attention** : Read this resource material carefully and in its entirety before use, to ensure it is understood and used properly.  Failure to properly follow the instructions in the resource materials DPAM provides may result in damage to your equipment.  As a result, by using the resource materials, you are assuming the risks associated with modifying your equipment. DENSO holds no liability, implied or otherwise, for damage, injury or any legal responsibility incurred, directly or indirectly from the use of the resource materials, including any loss of data or damage to property which may occur by your use of the resource materials. The use of the resource materials are not recommended unless you have technical knowledge and functional experience with the equipment and related software. DENSO is unable to provide support, remote or otherwise, for the information included in the resource material, nor for the ancillary topics relating to the information included in the resource materials. Therefore, if you are not fully comfortable with it, we strongly recommend that you send your unit to one of our Regional Support Centers for repair.  The information contained in the resource materials are subject to change at the sole discretion of DPAM.


Overview

Creating a new project in WINCAPS III is simple and straightforward.  Please follow the steps below, and also watch our YouTube video here on the same topic.

This procedure makes the assumption the user has already downloaded and installed WINCAPS III with a license key.  WINCAPS III can be downloaded from DENSO Wave here.


Video Tutorial


Step by Step Guide


Step 1

Open WINCAPS III from your start menu or shortcut respectively:


Step 2

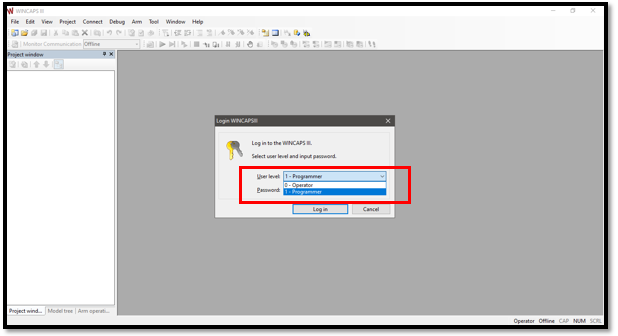

You will now see the WINCAPS III log in screen.  There is not a password that needs to be worried about.  From this screen, select “1 – Programmer” from the User level drop down.  Then press and hold the SHIFT Key, then press the down arrow to bypass this screen  (Shift + ↓)


Step 3

Now you see a blank WINCAPS III Screen.  Now click on File → New Project


Step 4

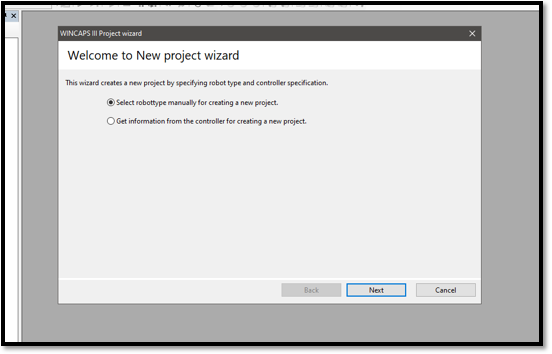

You will see the New Project Wizard.  Here you can choose between the following:

  1. Creating a new project manually, including robot type, IO type, etc. This is best for creating simulations, or creating new projects for later use on a controller.
  2. Getting information from a controller for creating a new project.  This option copies the current project from your connected controller into WINCAPS III.  This includes arm data, calibration data, variables, positions, coordinate system, parameters, offsets, I/O among others. This option is chosen if you want to create a complete backup of your existing system.


IMPORTANT:

If you create a backup of your controller, you now have 2 copies of the same project: one on the controller and one in WINCAPS III. If you edit one, it does not update the other. You will need to transfer the new data from one copy to the other (see Project Transfer). Be mindful of what information is where.


Step 5

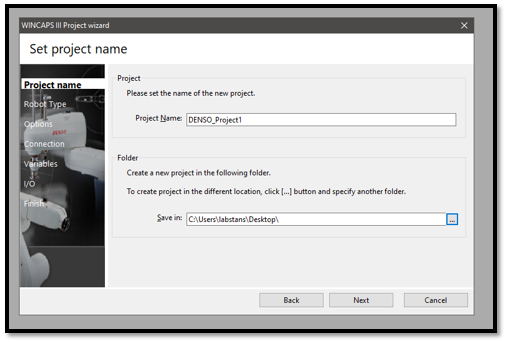

For this article, we will be selecting a robot type manually. Select the first option and press OK.  You will be prompted to enter a project name, and a destination save folder. Then click Next.



1. Note:
You are setting the Project name, this is different from individual program names.  You can only have a single robot for a single project, but you can have multiple programs under a single project.


2. Note:
The default save folder can be changed to a more convenient save location as needed from the Tool → Options menu after project creation.

Step 6

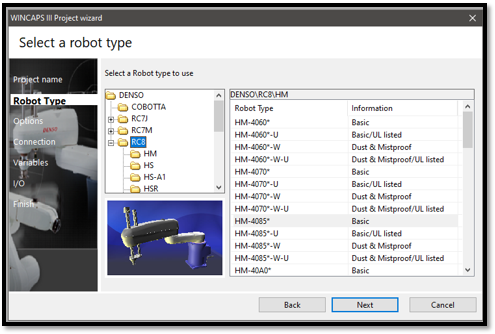

You will now select a robot type.  You can choose from any robot that is compatible with an RC7 or an RC8 controller.  This includes all the various arm lengths, shaft lengths, IP ratings etc. When finished, select Next.

Step 7

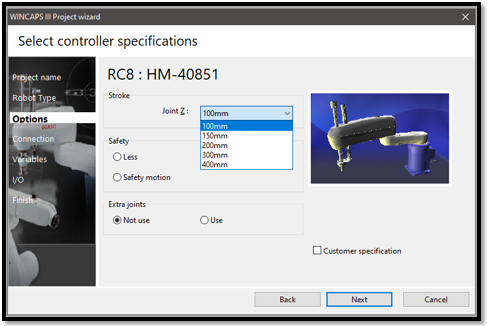

After selecting your robot type, you’ll come to the Select controller specifications screen.  It is here that you will choose robot model specific options for your project.  If this is a project that you will eventually be transferring to a real controller/robot arm, you want to make sure the options selected match, as there is no changing these in the project after the fact.  Click Next when finished.

Step 8

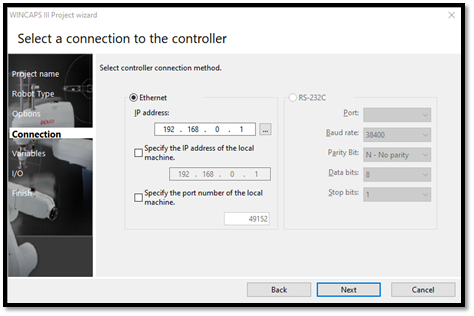

Now you will choose the connection method.  This will set the default IP address of the project.  However, when setting this up manually this step can be skipped and simply click Next.

Step 9

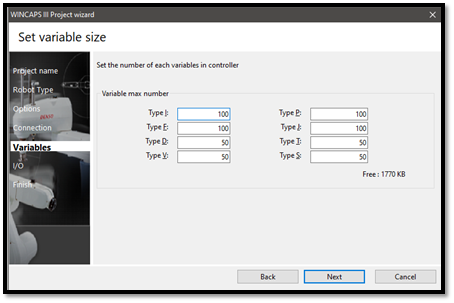

Now you can choose how many of each global variable type you desire for your project.  These quantities can be adjusted after project creation as needed.  When finished click Next.

Step 10

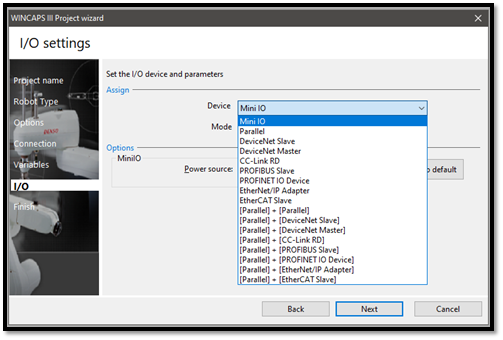

On this you can choose what IO device and settings you desire.  It defaults to DENSO’s Mini IO, but can be changed to whatever schema you will be using.  This too can be changed after project creation.  When finished click Next.

Step 11

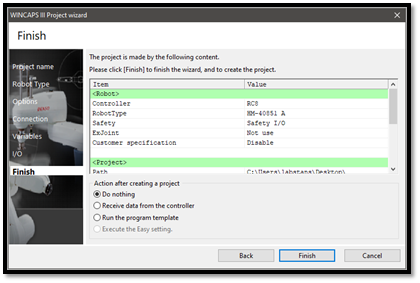

This final screen merely summarizes the options you’ve chosen thus far.  If everything is correct, you have the following options.  When you’ve made your selection, click Finish.

  • Do nothing: This will proceed with project creation, and not create any programs automatically.
  • Receive data from the controller: This will transfer data from the controller into WINCAPS.  This used if you’re backing up the controller into WINCAPS.
  • Run the program Template: this option will open up the Program template wizard, and allow you to set up a program via a wizard.
  • Execute the Easy setting: this option is available depending on what robot type is selected. It is a wizard that prompts you to enter the mass of payload, center of gravity, moment of inertia, and tooling offsets if desired

Step 12

You will now see a loading screen, and then your WINCAPS project now loaded.  From here you are able to add a program, and begin creating your project.

  • If you are attempting to restore the factory settings to your controller, then transfer this blank project to the controller to overwrite what is currently on the controller.
