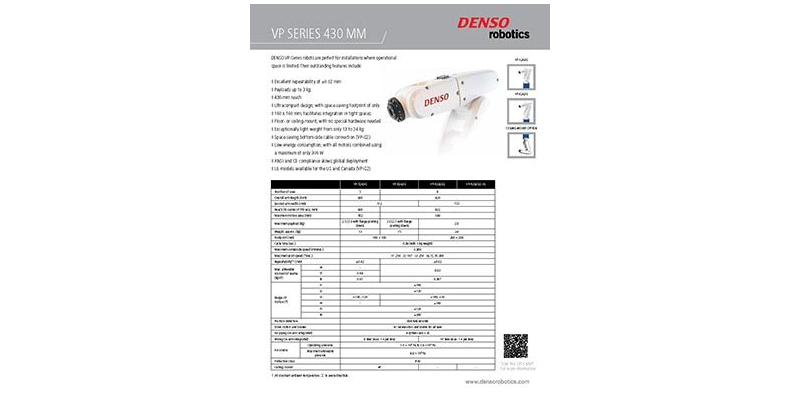

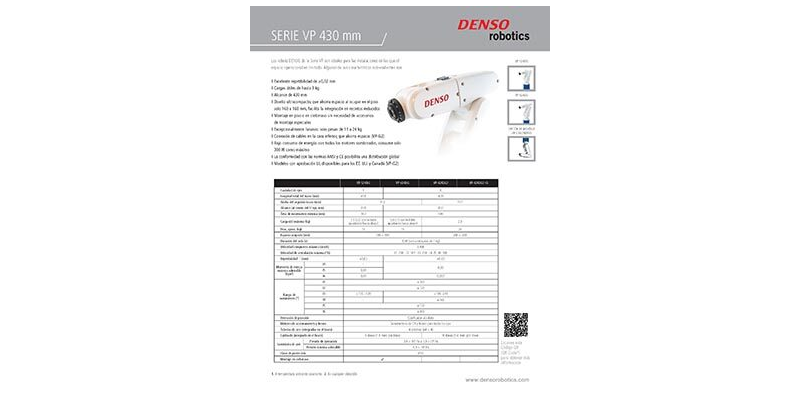

VP Series 5- and 6-axis Articulated Robots

The ultracompact VP Series 5- and 6-axis articulated robots offer the highest speed and repeatability in their class. Their small footprint of only 160 x 160 mm (200 mm dia. for the aseptic models) saves valuable facility space and makes integration easy, yet despite their size, they have a large payload capacity. In addition, their highly efficient motors use a maximum of only 80 W of power each, and all motors combined use a maximum of only 300 W, resulting in significant energy savings. The VP Series robots are ANSI/CE compliant and UL-listed (aseptic models), making them suitable for global deployment.

Max Payload	Reach	Cycle Time	Repeatability
2.5-3.0 kg	430/432 mm	0.99 sec	±0.020 mm

Overview

Available in 5- and 6-axis configurations, the VP Series robots are the most compact of all DENSO robots and are perfect for installation where motion space is limited.

Ultracompact, space-saving design
Highest speed and repeatability in their class
Energy-saving motors
High payload capacity

	Reach	Cycle Time*	Repeatability
5-Axis	430 mm	0.99 sec.	±0.020 mm
6-Axis	432 mm	0.99 sec.	±0.020 mm

**With 1 kg payload

Very Small Footprint

160 x 160 mm (200 x 200 mm for aseptic models)

Lightweight

13 kg / 15 kg

Compact Design

Facilitates integration in tight spaces

ANSI/CE Compliant and UL Listed

ANSI/CE compliant and UL-listed (aseptic models) making them suitable for global deployment.

Aseptic Models

The VP Series aseptic robots offer the same speed and repeatability as the standard VP Series models but with ISO 5 (class 100) cleanroom performance. In addition, anodized aluminum coverings, a protective outer coating and specially sealed joints allow VP Series aseptic robots to be safely cleaned with hydrogen peroxide. This enables the robots to be used in applications where biocontamination control is required, such as those in the medical and pharmaceutical industries. VP Series aseptic robots are available in either ANSI and CE or UL models.

Specifications

Model name		VP-5243	VP-6242
No. of axes		5	6
Position detection		Absolute encoder	Absolute encoder
Drive motor		AC servomotors for all joints	AC servomotors for all joints
Brakes		Brakes for all joints	Brakes for all joints
Overall arm length (first arm+second arm)		430mm (210mm+22mm)	420mm (210mm+210mm)
Arm offset	J3 (front arm)	–	75mm
Maximum motion area (Point P)		430mm	432mm
Motion range	J1	±160°	±160°
	J2	±120°	±120°
	J3	+136°, -128°	+160°, +19°
	J4	–	±160°
	J5	±120°	±120°
	J6	±360°	±360°
Maximum payload (wrist downward movement is within ±45°)		3kg ^*3	2.5kg ^*4
Maximum composite speed (at the center of an end-effector mounting face)		3,900mm/sec	–
Cycle time ^*1		0.99 sec	–
Position repeatability at the center of an end-effector mounting face ^*2		±0.02mm	–
Maximum allowable inertia moment (interia)	J4, J5	0.04kgm² ^*5	0.03kgm²
Maximum allowable inertia moment (interia)	J6	0.01kgm²	0.007kgm²
User air piping		4 systems (φ4x4)	4 systems (φ4x4)
User signal line		9 (for proximity sensor signals, etc.)	9 (for proximity sensor signals, etc.)
Air source	Operating pressure	0.10 – 0.39 MPa	0.10 – 0.39 MPa
Air source	Maximum allowable pressure	0.49 MPa	0.49 MPa
Noise		<80 dB(A)	<80 dB(A)
Approximate weight		13kg	15kg

^*1 Time required for a robot to move a 1kg payload between two points 300mm apart at a height of 25mm.
^*2 Position repeatability is the precision at constant ambient temperature.
^*3 If wrist downward movement exceeds ±45°, the maximum payload is 2.5kg.
^*4 If wrist downward movement exceeds ±45°, the maximum payload is 2kg.
^*5 VP-5243 has no J4.
